DIY Free-standing insulated Gable in footing Patio

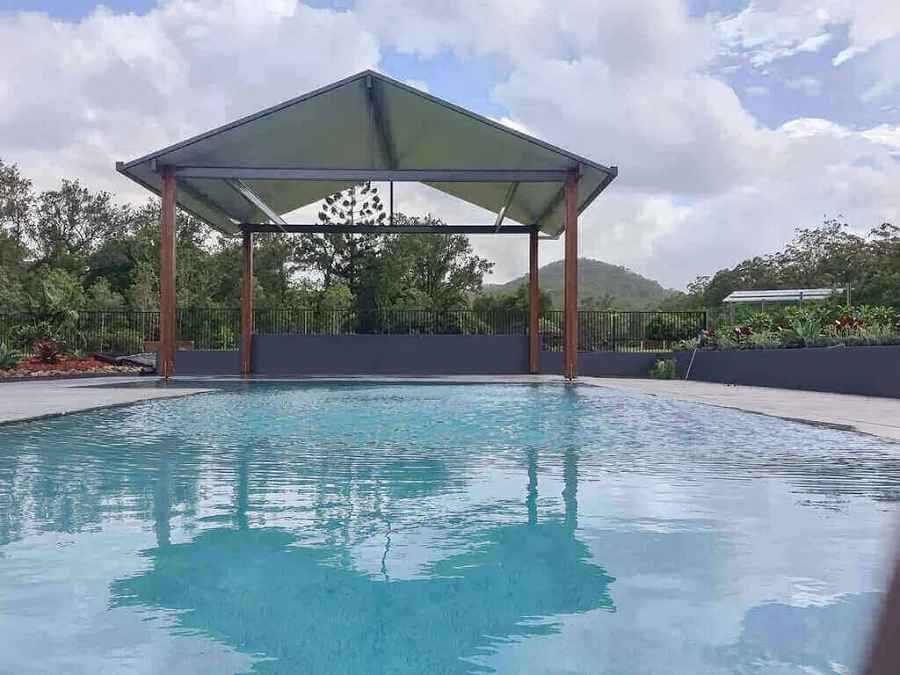

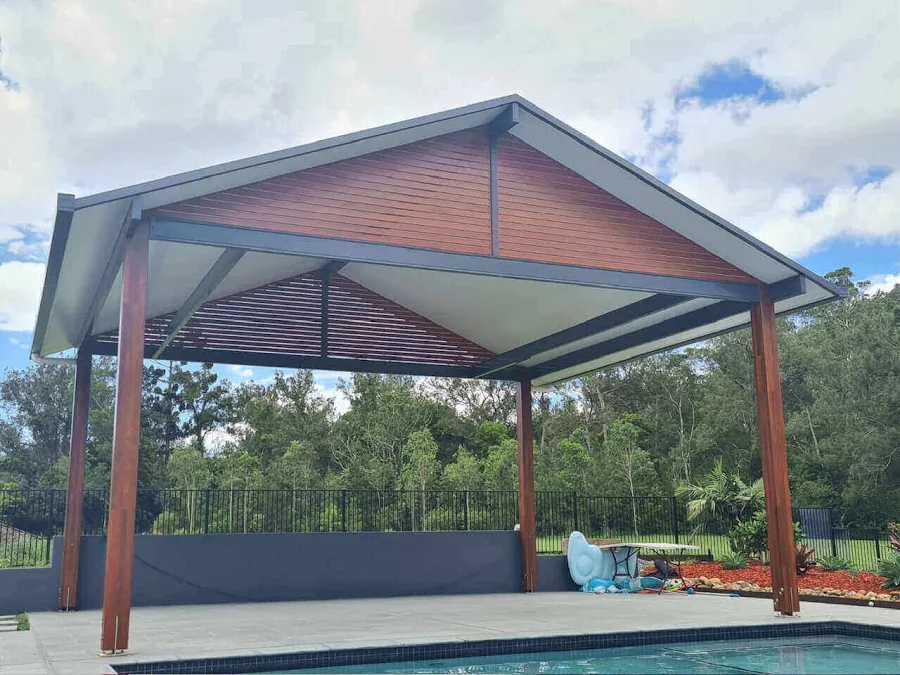

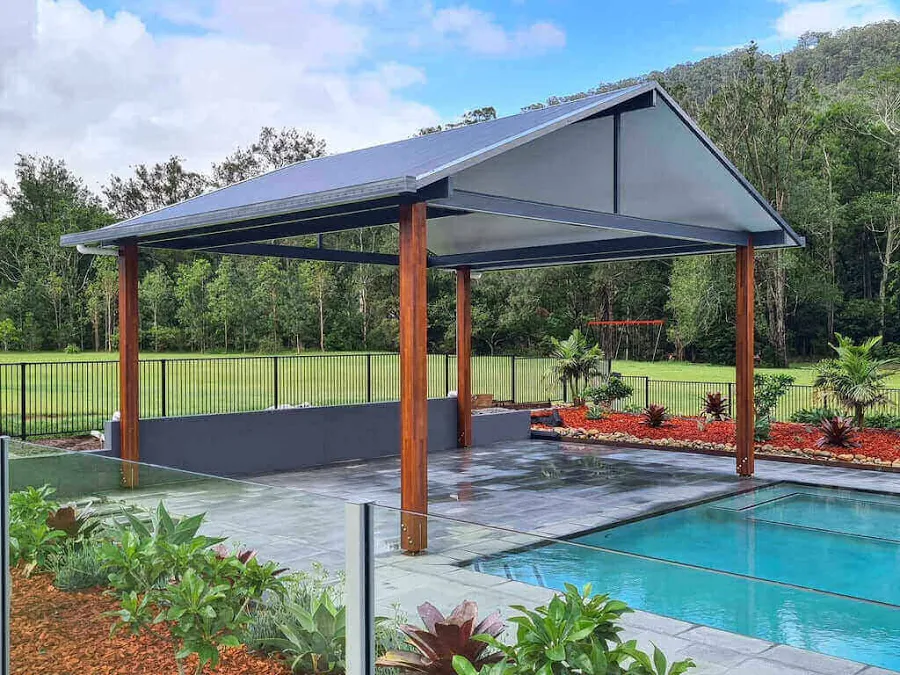

The DIY Free-Standing Insulated Gable Patio (In-Footing Mount) is an all-in-one outdoor living solution designed to create a high-clearance, climate-controlled entertaining space independent of existing house structures. Engineered specifically for Australian conditions, this freestanding kit features a classic pitched gable roofline that maximizes head height, improves natural airflow, and creates a spacious, architectural aesthetic for backyards, poolside areas, or rural properties.

At the core of the system are high-performance insulated roofing panels incorporating a rigid expanded polystyrene (EPS) core sandwiched between protective Colorbond steel skins. This 3-in-1 roof, insulation, and ceiling panel significantly reduces radiant heat transfer during hot Australian summers and minimizes rain noise during severe weather. The underside of the panels provides a pre-finished, smooth ceiling appearance that eliminates the need for painted plasterboard or exposed rafters.

Designed for in-ground footing installation, the kit includes extended steel posts designed to be set directly into poured concrete footings. This structurally sound post-to-footing system delivers maximum stability and resistance against uplift forces, making it ideal for grassed yards, garden areas, or sites where a concrete slab is not yet present. Complete with pre-engineered structural steel beams, ridge caps, flashing, integrated box gutters, downpipes, and color-matched fixings, this DIY system allows homeowners and handypeople to assemble a professional-grade patio.

Key Features

• 3-in-1 Insulated Panel System: Combines a durable Colorbond steel roof profile, EPS insulation core, and a smooth ceiling lining in a single integrated panel.

• Pitched Gable Architecture: High-center ridge height offers enhanced air circulation and superior heat venting compared to flat roof designs.

• In-Footing Post System: Heavy-duty, powder-coated steel posts engineered for direct concrete footing embedment to provide maximum structural anchoring.

• 100% Australian Steel Components: Constructed using high-tensile BlueScope steel framing and genuine Colorbond capping for long-term weather resistance.

• Integrated Water Management: Supplied with custom ridge cappings, barge cappings, box gutters, flashings, PVC downpipe, and sealing accessories.

• Concealed Wiring Channels: Insulated roof panels include built-in internal core ducts to easily run electrical cables for LED downlights and ceiling fans.

• DIY Engineered Kit: Fully engineered design supplied with step-by-step installation instructions, structural plans, and all required hardware.

Specifications

• Structure Type: Freestanding Gable Patio Kit

• Roofing Type: EPS Core Insulated Steel Panels

• Roof Panel Thickness: 50 mm (Standard)

• Post Mount Style: In-Footing (In-Ground Concrete Embedment)

• Steel Grade: BlueScope / Colorbond High-Tensile Steel

• Post Dimensions: 100 mm x 100 mm x 4.0 m Powder-Coated Steel Posts

• Beam Frame: 150 mm x 65 mm / 200 mm x 65 mm Structural Steel Beams

• Wind Rating Compliance: Standard N2 (W33) / Upgradable to N3, N4, and Cyclonic Ratings

• Rainwater System: Includes Guttering, Stop Ends, Uni-Drops, and 90 mm PVC Downpipe Assembly

• Fixings Included: Tek Screws, Bolts, Pop Rivets, Beam End Caps, and Neutral Cure Silicone

• Color Availability: Standard Colorbond Palette (including Surfmist, Monument, Paperbark, and Woodland Grey)
