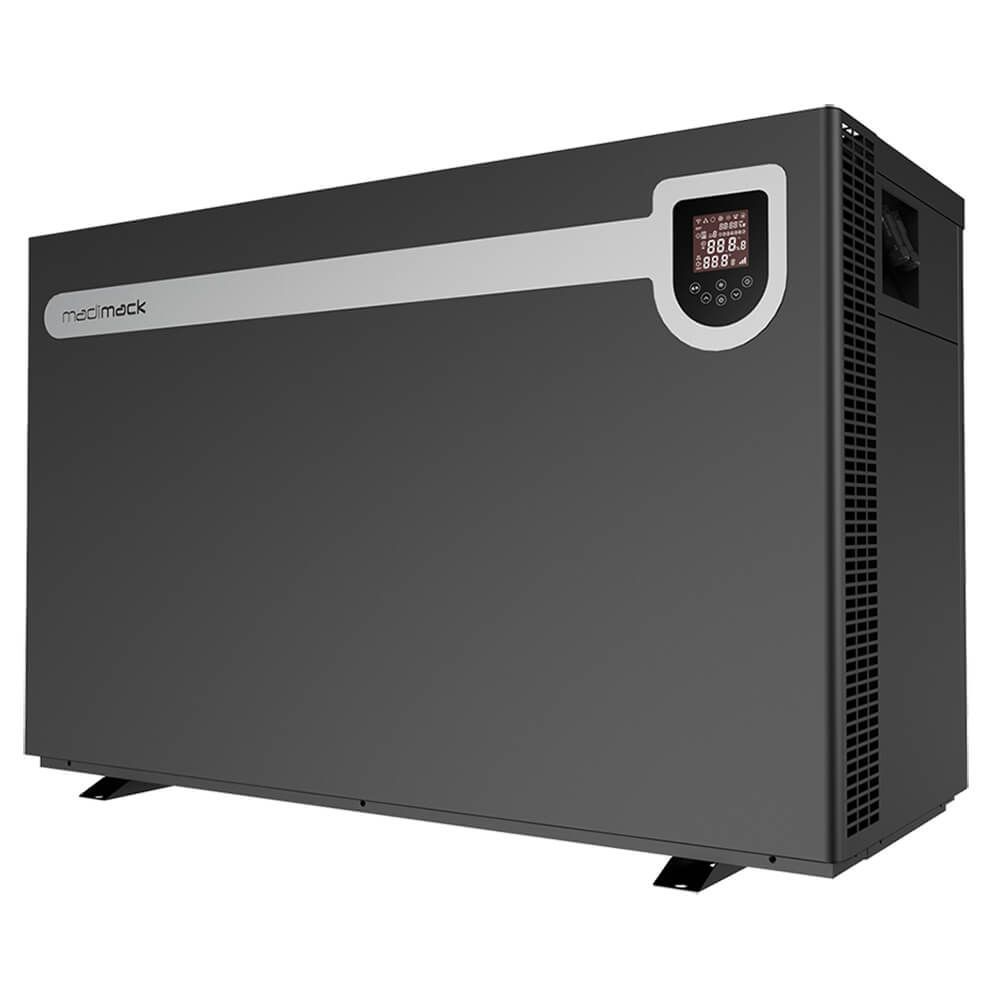

madimack hpelv4au Elite V4 Pool Heat Pump

Engineered specifically for demanding Australian climates, the Madimack Elite V4 Pool Heat Pump represents a major benchmark in residential and commercial pool heating technology. Designed with an industry-leading inverter platform, the Elite V4 series dynamically modulates compressor and fan speeds to deliver rapid pool heat-up times while maintaining maximum energy efficiency.

The unit features a revolutionary 3D triple-directional airflow system, which optimizes air intake and significantly reduces surrounding clearance requirements during outdoor installation. Housed in a marine-grade, anti-corrosive aluminium alloy casing, the Elite V4 withstands extreme coastal and outdoor elements. With triple-layered sound insulation, a commercial-grade centrifugal fan, and a premium Mitsubishi DC twin-rotary compressor, it operates at ultra-quiet noise levels. Integrated Wi-Fi capabilities and smart app integration allow pool owners to manage temperature schedules and operational modes remotely with total ease.

Key Features

• Advanced Full Inverter Technology: Intelligently modulates speed and output to deliver an exceptional Coefficient of Performance (COP) up to 22, drastically lowering running costs.

• 3D Triple-Directional Airflow: Multi-directional ventilation design optimises thermal transfer and drastically minimizes clearance space needed around equipment pads.

• Ultra-Quiet Operation: Built with triple-layered sound insulation (condensed fibre, foam, and outer metal jacket) to deliver near-silent performance in residential settings.

• Marine-Grade Aluminium Casing: Heavy-duty anti-corrosive outer housing engineered to resist rust, UV exposure, and harsh Australian weather conditions.

• Integrated Wi-Fi Control: Remote monitoring and smart app connectivity allow effortless temperature adjustments and scheduling from mobile devices.

• Mitsubishi Twin-Rotary Compressor: High-efficiency DC twin-rotary compressor paired with a commercial centrifugal fan for fast heat recovery.

• Quick Connect External Plugs: Pre-fitted universal connectors streamline electrical setup and external system integration.

Specifications

• Model Series: Madimack InverELITE V4 (HPELV4AU)

• Operation Modes: Heating and Cooling (Reverse Cycle)

• Compressor Type: Mitsubishi DC Twin-Rotary Compressor

• Refrigerant: Eco-friendly R32

• Heat Exchanger: Pure Titanium Heat Exchanger

• Cabinet Material: Marine-Grade Aluminium Alloy

• COP Efficiency: Up to 22.0 (under Air 27°C / Water 27°C / RH 80%)

• Operating Temperature Range: -20°C to 43°C Ambient Temperature

• Noise Output: As low as 37.6 dB at 1 metre

• Control Display: Wi-Fi Enabled Touch Screen Interface

• Water Connection Size: 40 mm Union

• Power Supply Options: 230V Single-Phase (10A Plug-and-Play on smaller kW capacities; Hardwired on larger capacities) / 400V Three-Phase
