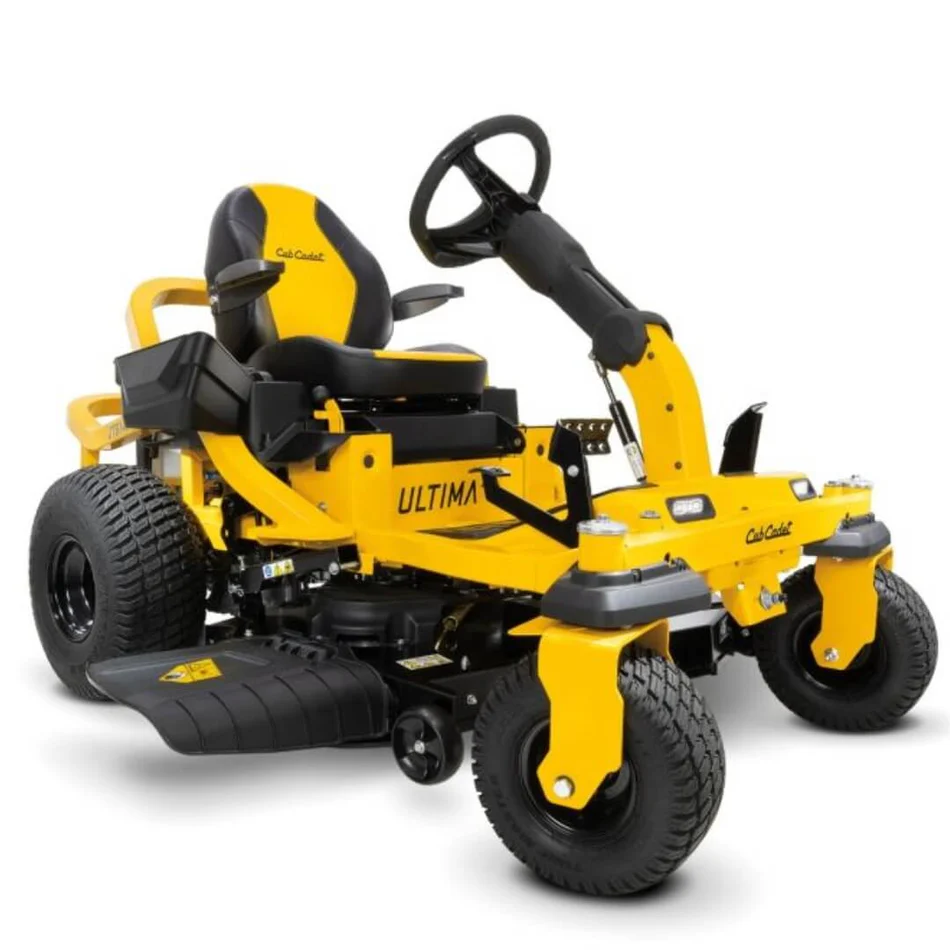

ZTS1 46 Ultima Series ZTS

The Cub Cadet Ultima Series ZTS1 46 Zero Turn Mower delivers high-performance turf management, combining zero-turn agility with advanced steering control. Engineered for large residential properties and small acreage applications up to 5 acres, this mower features Synchro-Steer technology with four-wheel steering control. Unlike traditional lap-bar zero-turn mowers, the integrated steering wheel provides superior stability, control, and confidence when navigating uneven terrain and sloped landscapes up to 20 degrees.

Driven by a powerful 679cc V-Twin Cub Cadet engine paired with dual Hydro-Gear EZT 2200 hydrostatic transmissions, the ZTS1 46 delivers smooth, responsive power with forward speeds up to 11 km/h. The heavy-duty 46-inch (117 cm) fabricated steel cutting deck is constructed from 11-gauge steel, offering maximum strength, optimal airflow, and reduced grass clumping for a clean, consistent cut. Designed for operator comfort, it includes an adjustable high-back seat, ergonomic control panel, dual-LED headlights for low-light operation, and an open frame design for easy access during routine maintenance.

Key Features

• Synchro-Steer Technology: Provides full four-wheel steering wheel control, offering zero-turn manoeuvrability with enhanced hillside stability on slopes up to 20 degrees.

• Fabricated AeroForce Deck: 46-inch (117 cm) 11-gauge heavy-duty welded steel deck engineered for superior airflow, cut quality, and long-term durability.

• High-Output Engine: Powered by a 679cc V-Twin Cub Cadet engine providing reliable starting and consistent power output across dense grass.

• Dual Hydrostatic Transmission: Dual Hydro-Gear EZT 2200 transmissions deliver smooth, variable-speed control and responsive handling without manual gear shifting.

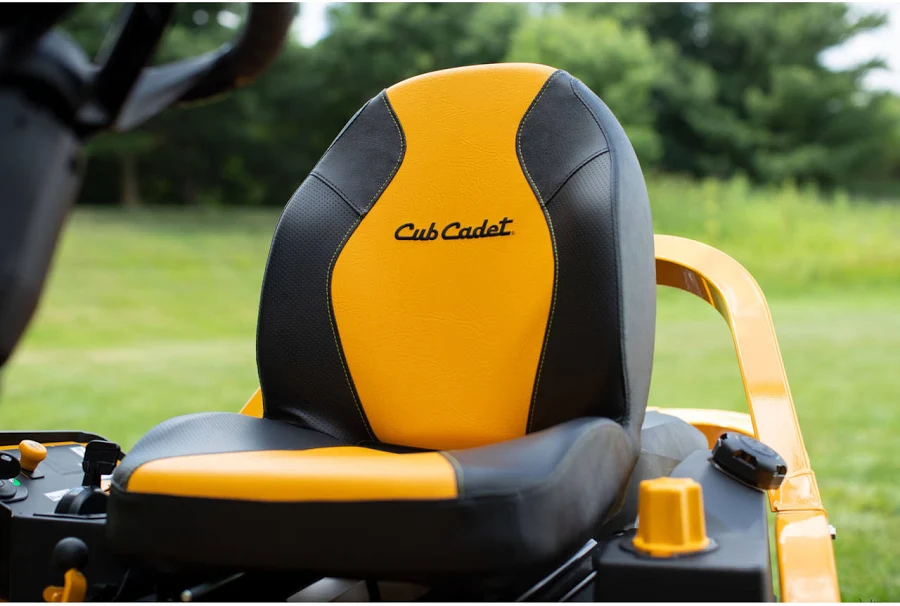

• Operator Comfort: Features a premium high-back seat, soft-touch steering wheel, vibration-dampening floor mat, step-assist footholds, and integrated cup holder.

• Dual-LED Headlights: Front-mounted LED headlight bar provides maximum illumination for low-light mowing conditions.

• Rugged Tubular Frame: Built on a continuous 2×2-inch square tubular steel frame coated for corrosion protection and maximum structural integrity.

Specifications

• Engine: 679cc V-Twin Cub Cadet Engine

• Recommended Block Size: Up to 5 Acres (2 Hectares)

• Cutting Width: 46 Inches (117 cm)

• Deck Construction: 11-Gauge Fabricated Steel

• Transmission: Dual Hydro-Gear EZT 2200 Hydrostatic

• Height Adjustment: 8-Position Dial (25 mm to 115 mm)

• Slope Capability: Up to 20 Degrees

• Maximum Speed: 11 km/h Forward / 5.6 km/h Reverse

• Blade Engagement: Electric PTO

• Fuel Capacity: 13.2 Litres

• Front Tyres: 13 x 6.5 Inch Turf Armor

• Rear Tyres: 20 x 8 Inch Turf Master

• Tow Hitch: Included as Standard

• Weight: 362 kg

• Overall Dimensions: 213 cm (L) x 122 cm (W – Chute Up)
