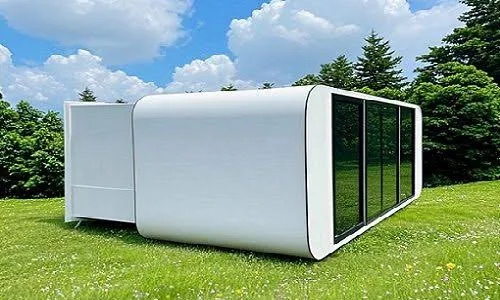

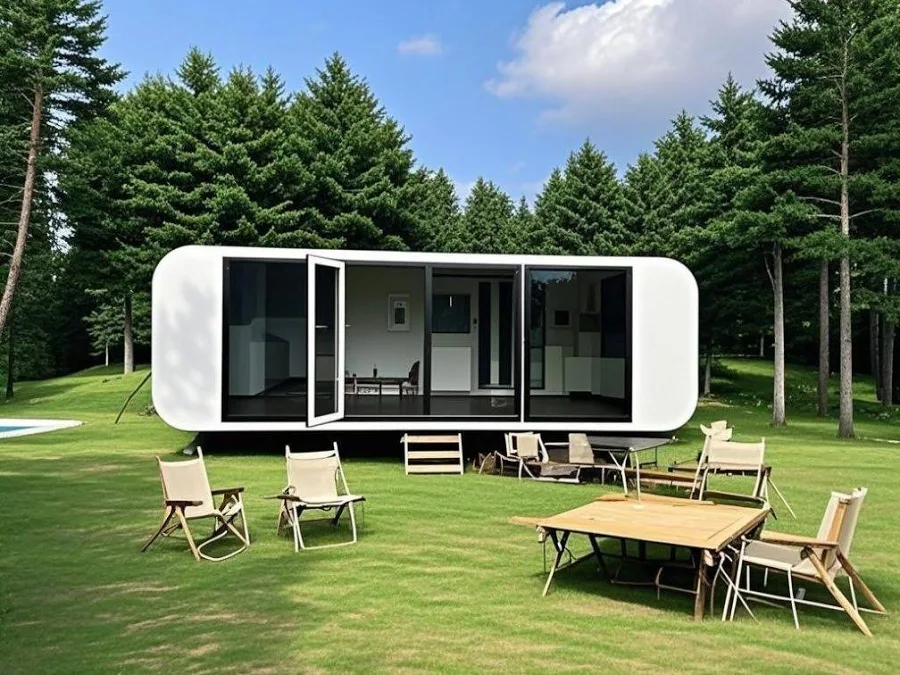

Transportable Accomodation Pod 6m – Type A

The Transportable Accommodation Pod 6m – Type A is a versatile, self-contained modular unit engineered specifically to deliver flexible extra living space, site offices, or granny flat accommodation across urban and regional Australian locations. Manufactured with a structural steel chassis and fluorocarbon insulated wall and roof panels, this 6-metre pod provides excellent thermal efficiency, weather protection, and structural integrity for long-term outdoor deployment.

The interior design maximizes usable space, featuring integrated LED downlights, timber-look vinyl flooring, and double-glazed lockable windows and entry doors for enhanced security and noise reduction. The Type A configuration incorporates a functional layout complete with an ensuite bathroom, compact vanity basin, shower, and toilet, alongside pre-wired electrical connections to AS/NZS 3000 standards. Designed for effortless transport and installation, the pod chassis features built-in forklift pockets and adjustable levelling feet to accommodate varying site ground conditions.

Key Features

• Heavy-Duty Construction: Built on a primed structural steel chassis with fluorocarbon insulated panels for high durability and energy efficiency.

• Integrated Ensuite Bathroom: Includes a porcelain toilet, acrylic shower base with chrome fixtures, vanity basin, and pre-installed internal plumbing connections.

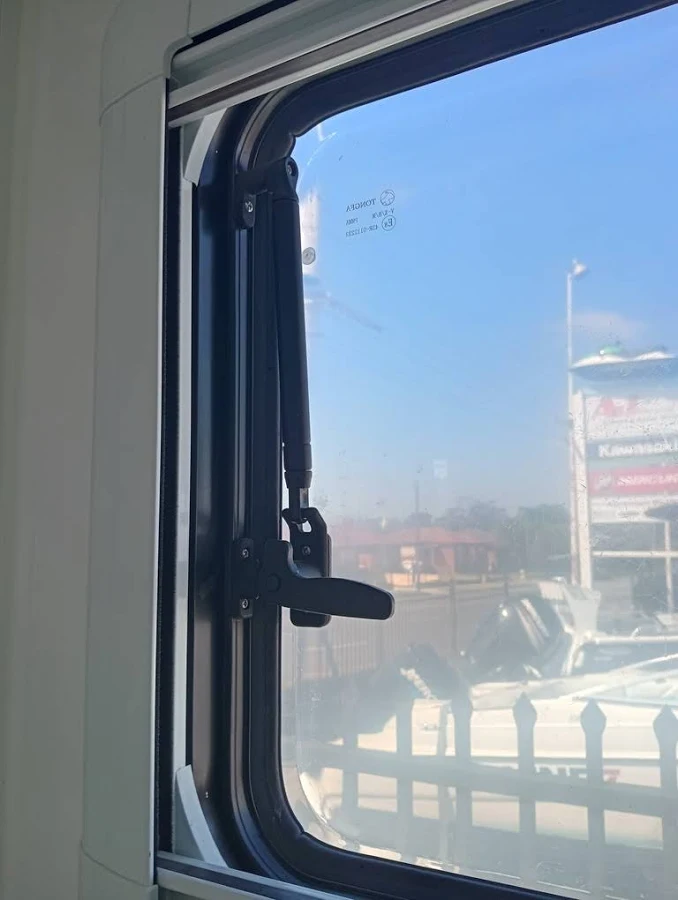

• Double-Glazed Openings: Aluminium-framed double-glazed doors and awning windows fitted with integrated flyscreens and blinds for climate control and ventilation.

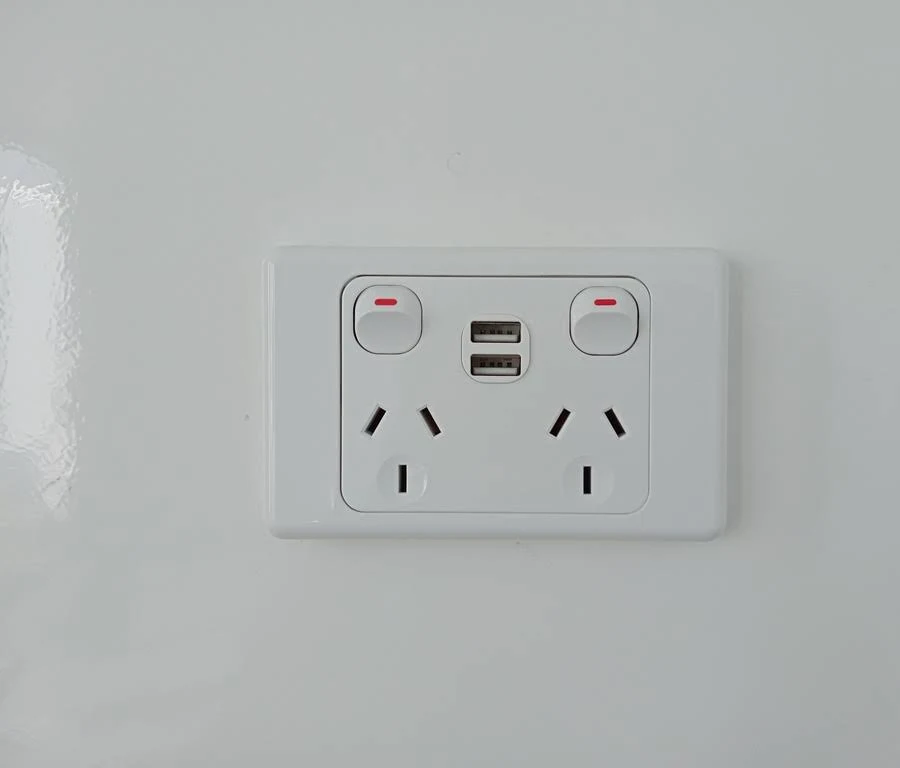

• Plug & Play Electrical System: Pre-wired to AS/NZS 3000 standards with internal LED downlights, double power points, safety switches, and a 15-amp external waterproof power inlet.

• Easy Manoeuvrability: Integrated chassis forklift pockets, lifting points, and adjustable threaded feet allow straightforward positioning and levelling on uneven terrain.

• Low Maintenance Interior: Low-maintenance PVC composite wall lining and durable vinyl flooring designed for easy cleaning and high foot-traffic wear.

Technical Specifications

• External Dimensions (L x W x H): 5,930 mm x 2,250 mm x 2,450 mm

• Internal Floor Area: Approx. 12.5 m²

• Overall Tare Weight: Approx. 2,100 kg

• Frame & Chassis: Galvanised Structural Steel with Epoxy Coating

• Wall & Roof Insulation: 75 mm Polyurethane / Fluorocarbon Composite Panels

• Glazing: Double-Glazed Tempered Glass with Powder-Coated Aluminium Frames

• Flooring: Heavy-Duty Wear-Resistant Vinyl over Marine-Grade Subfloor

• Electrical Compliance: AS/NZS 3000 Certified Wiring & RCM Approved Components

• Power Connection: 240V / 15-Amp Weatherproof External Inlet

• Lighting: Internal & External Low-Voltage LED Downlights

• Plumbing: Pre-Fitted Hot & Cold Water Lines with Standard Waste Connections
